12V, 24V DC Liner motor, Linear Actuator for electric bed,chair,curtain,door

FOB Reference Price:Get Latest Price
US $25-30 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
DAIWEI Motor
Model Number:
SLG19.4 /TLG19.4 Series
Usage:
Boat, Car, Electric Bicycle, Fan, Home Appliance, Reclining chair, massage armchair, Door opener, electric bed ,curtain
Construction:
Permanent Magnet
Commutation:
Brush
Continuous Current(A):
2A
Output Power:
48W
Voltage(V):
24
Efficiency:
45%
Standard Stroke(mm):
85/100/150
Max Pull/Push Tension:
680N/1150N
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Port
Shanghai

INTRODUCTION



The SLG19.4 Series and SLG19.4 Series 24V DC linear actuator is an equipment that creats motion in a atraight line. It can also be called linear motor.

The linear actuators are widely used in machine tools and automation equipments,car window ,carboot, in computer  peripherals such as disk drives and printers, in valves and dampers, and in many other places where linear motion is required. It can save much human resource and improve working efficiency.



Now we already have 6 standard models for you to choose. And we also have abundant strength to develop new products to meet your diversified requirement. So if you have any special requirement, please email us.





PRODUCT LIST



MODELREDUCTION RATIORATED VOLTAGE(V)STROKE(mm)
SLG19.4/85-38ZY1:19.424V            HOT85
SLG19.4/100-38ZY 1:19.4 24V            HOT100
SLG19.4/150-38ZY 1:19.4 24V            HOT 150
TLG19.4/85-38ZY 1:19.4 24V            85
TLG19.4/100-38ZY 1:19.4 24V            100
TLG19.4/150-38ZY 1:19.4 24V            150





PARAMETER



Model: SLG19.4 Series

                  TLG19.4 Series

Input Voltage: 24V

Mounting Distance: S+78mm

Limit Switches: Internal

Motor

 RATED VOLTAGE(V)NO-LOAD SPEED(RPM)STALL CURRENT(mA)
SLG19.4/85-38ZY2450004000
SLG19.4/100-38ZY2450004000
SLG19.4/150-38ZY2450004000



LINEAR  ACTUATOR

 STROKE(mm)TEST@360NNO-LOAD SPEED(mm/s) NO-LOAD CURRENT(mA)RATED CURRENT(mA)
CURRENT(mA)SPEED(mm/s)
SLG19.4/85-38ZY8516002425.8150



1600

SLG19.4/100-38ZY100
SLG19.4/150-38ZY150

The TLG19.4 Series linear actuator have 3 times push/pull tension than SLG19.4 Series.

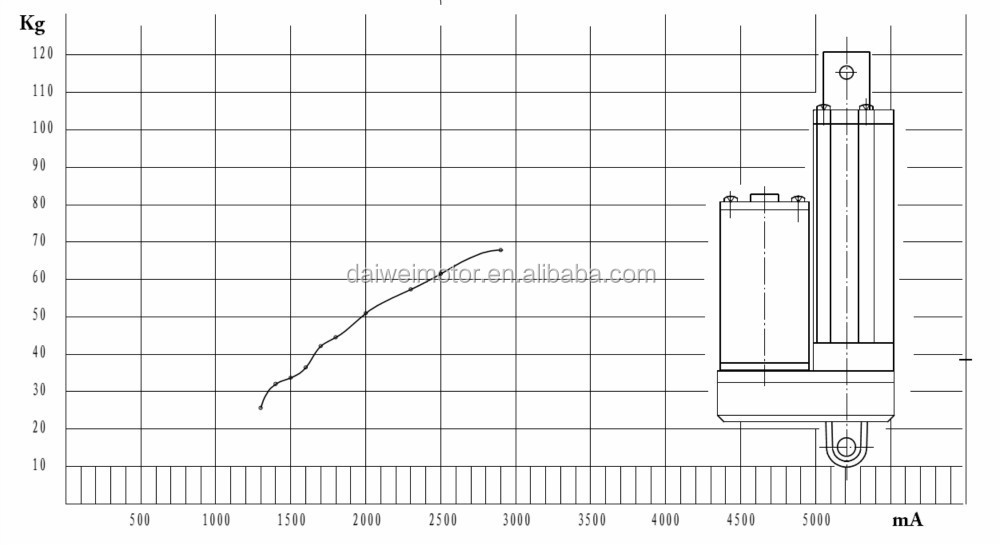

SLG19.4 SERIES TEST DATA

SLG19.4 .jpg

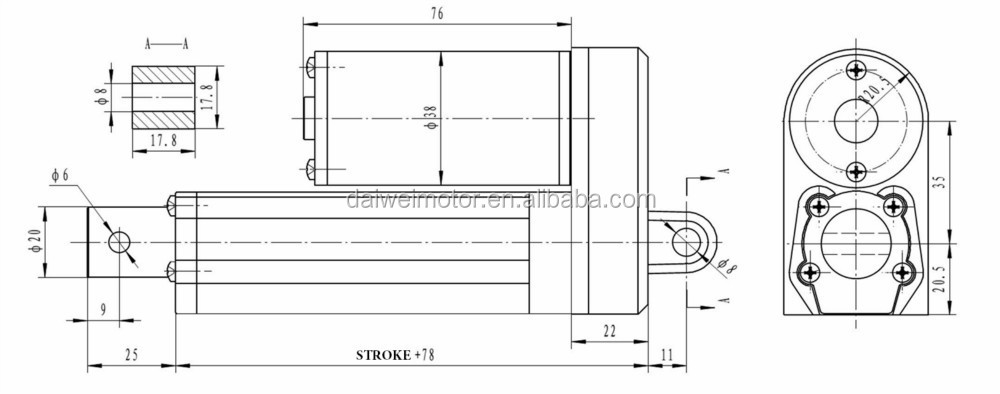

DIMENSION


Other stroke can be customized.

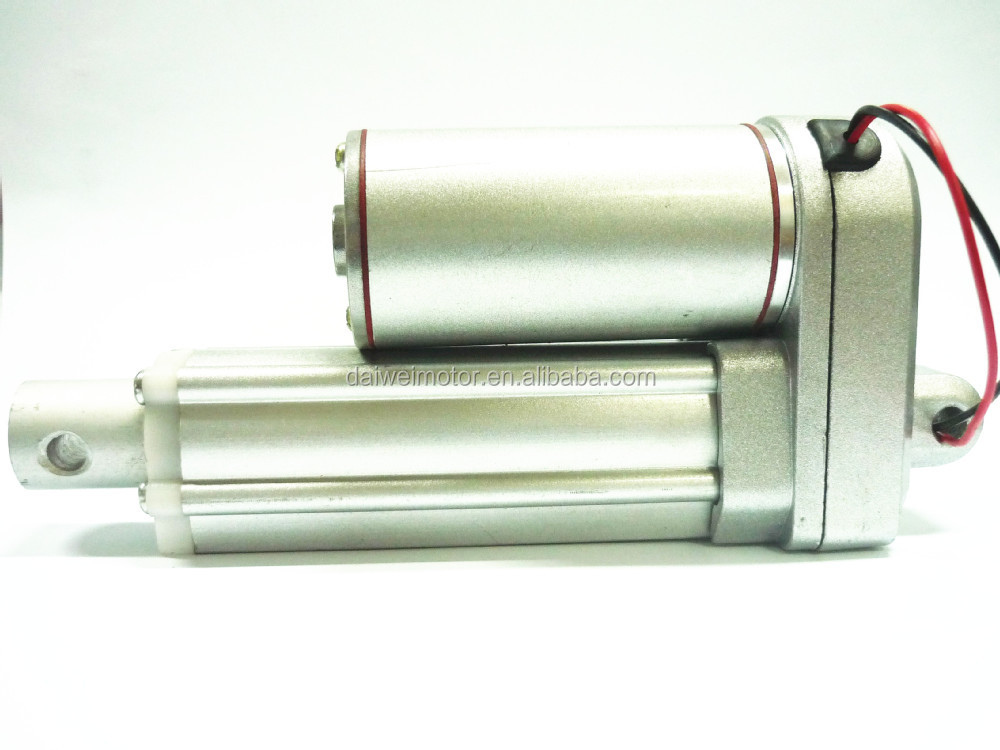

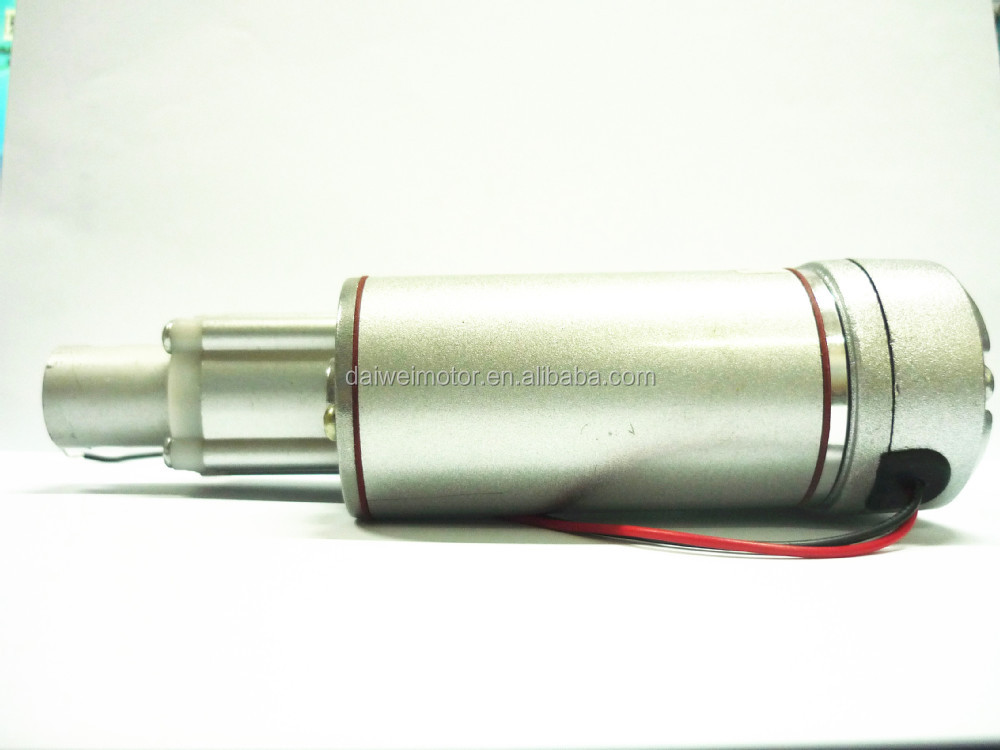

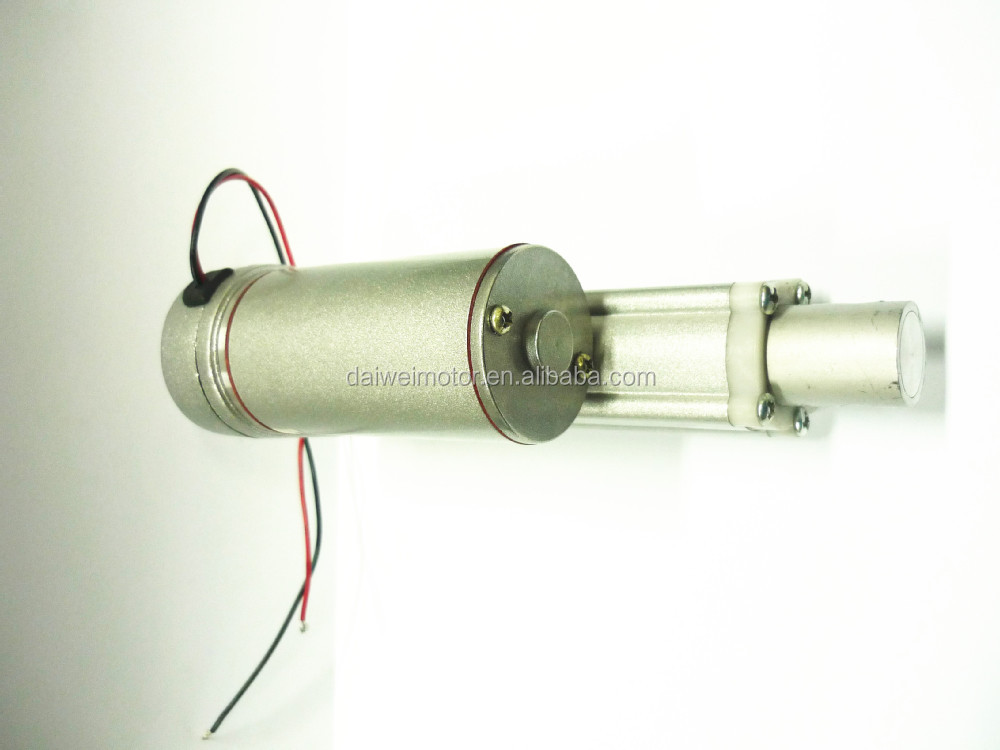

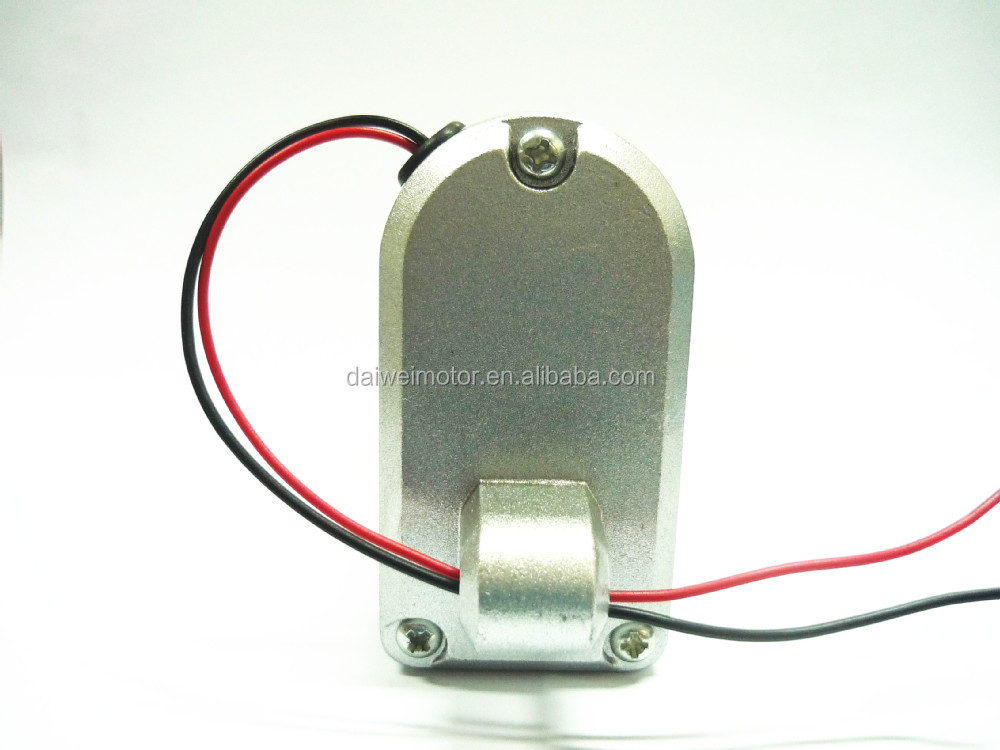

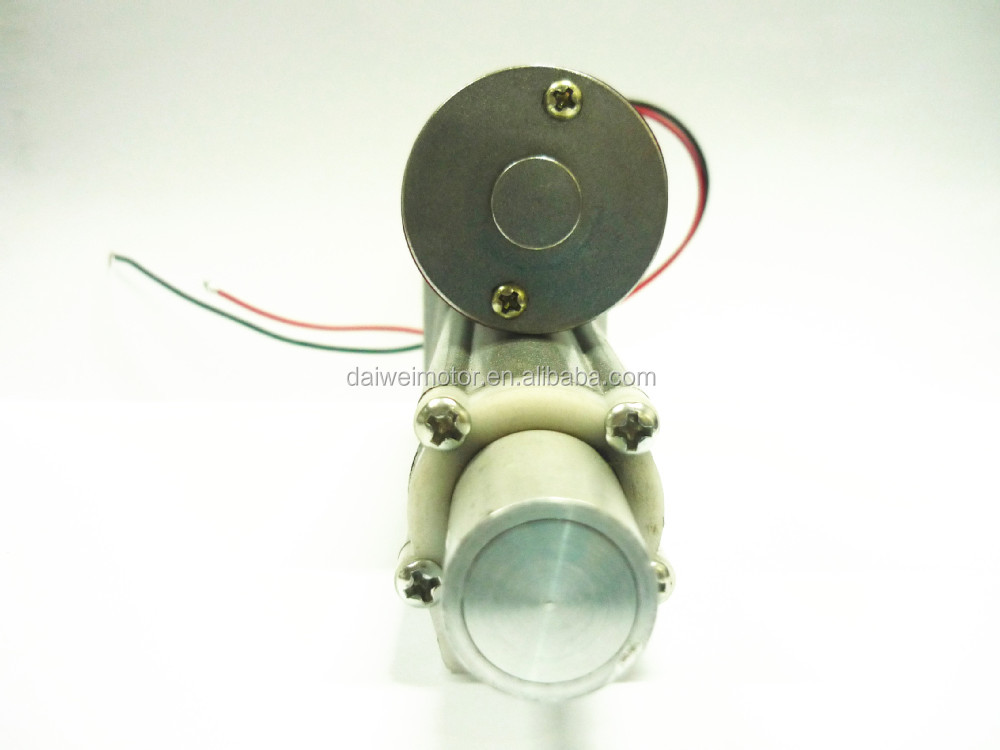

REAL  SHOOT




COMPANY INFORMATION

We are the most professional  micro worm gear motor manufacturer in China!



DAIWEI Motor is a manufacturer of DC/Brushless motor , DC/Brushless Gear Motor , Window Motor with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products areextensively used in automation equipments ,intelligent buildings and other industries.
Our products are widely recognized and trusted by users and can meet continuously
changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future businessrelationships !

Choose us , choose success !
